4SP8 Series

Home / Fountain Pump / 4SP8 Series
  • water-fountain-pumps.png
Product Model:

4SP8 Series

4SP8 Series

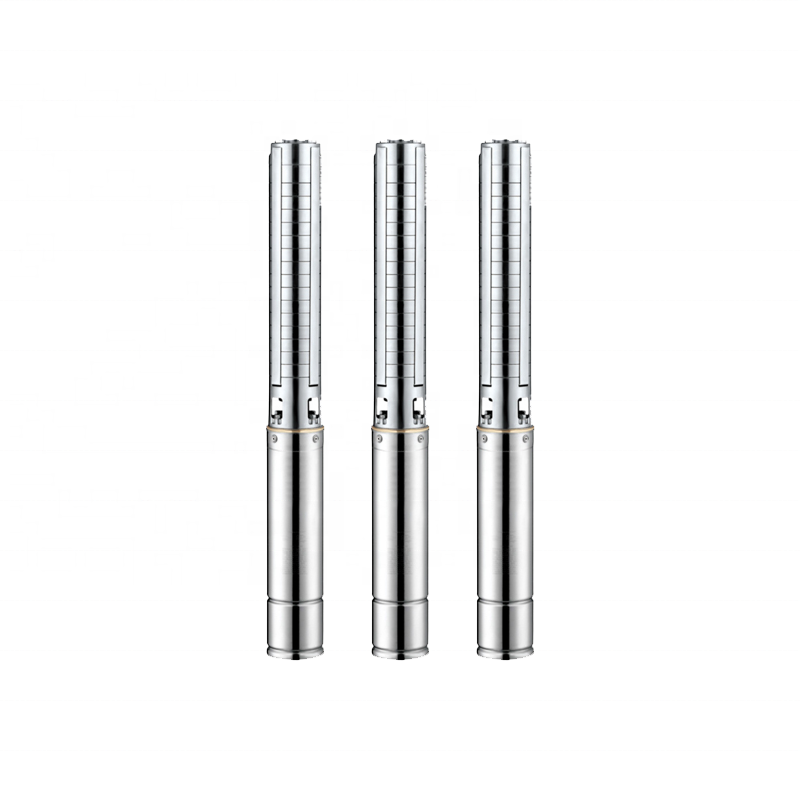

  • Deehp’s high-performance encapsulated 4-inch fountain pump is specially built for medium-large simultaneous multi-spray fountain operation. Equipped with enlarged stamped SS304 impeller channels, this Deehp pump effectively lowers clogging risks caused by tiny outdoor pond sediment. Featuring full stainless steel hydraulic construction and optional fluororubber sealing, it delivers reliable operation in hard water conditions. Fully compatible with DEEHP 1.5kW–7.5kW 4-inch oil-cooled submersible motors, its flexible multi-stage design provides adjustable lift ranging from 15m to 221m, perfectly suited for small square musical fountain groups and shallow pond bubbling display systems.

FOB Reference Price:

Overview

  • Deehp’s 4SP8 sub-series is a stainless steel submersible fountain pump with a uniform 4-inch outer barrel diameter, fixed rated flow of 8 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this Deehp sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,4SP8-5

    4 —— pump size (inches),

    SP —— pump series,

    8 —— rated flow rate (m³/h),

    5 —— 5 impeller stages

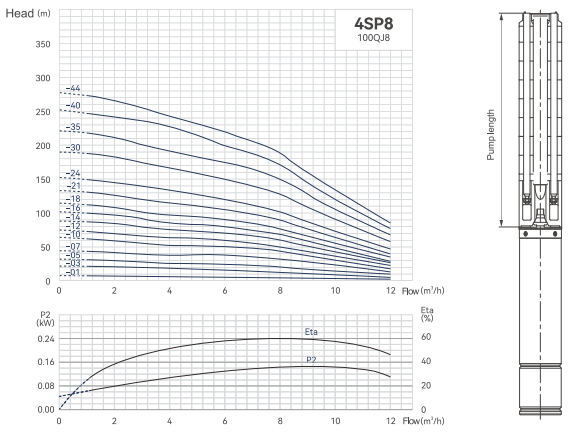

Performance Parameters

  • MOTOR PUMP MODEL MOTOR DELIVERY (n~2850r/min) OUTLET DIAMETER
    KW HP FL ow m/h 0 2 4 6 8 10
    4SP8-05 0.75 1.1 HEAD (m) 32 30 26 25 21 15 18 DN 50 2"
    4SP8-07 1.1 1.5 44 41 36 35 30 21 13
    4SP8-10 1.5 2 63 59 52 50 43 30 19
    4SP8-12 2.2 3 76 70 63 60 51 36 23
    4SP8-14 2.2 3 89 84 74 70 60 42 27
    4SP8-18 3 4 114 109 128 95 90 77 54 34
    4SP8-21 4 5.5 133 115 105 90 63 40
    4SP8-24 4 5.5 152 145 132 120 103 72 46
    4SP8-30 5.5 7.5 190 183 166 150 129 90 57
    4SP8-35 5.5 7.5 221 211 192 175 1 50 105 67
    4SP8-40 7.5 10 252 243 228 200 172 120 76
    4SP8-44 7.5 10 278 268 243 220 1 89 132 84
