10-inch water-cooled motor

Home / Water Cooled Motor / 10-inch water-cooled motor
  • water-cooled-electric-motor.png
Product Model:

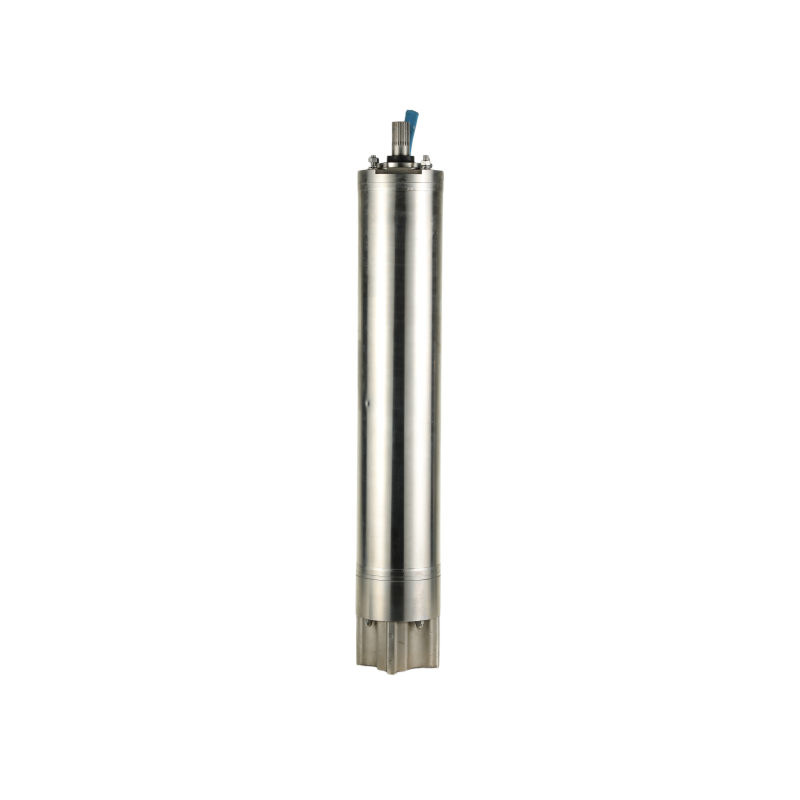

10-inch water-cooled motor

10-inch water-cooled motor

  • Top-tier oversized 10-inch water-cooled motor designed by Deehp supporting ultra-large flow 10SP & cast 10QP fountain pumps with power coverage 22kW–110kW. Oversized internal circulating cooling channels maximize heat transfer efficiency, ideal for super-large lake fountain and multi-group synchronized water feature projects. Reinforced heavy stainless steel casing delivers outstanding mechanical stability against harsh outdoor underwater environments. Standard fluorine rubber sealing system adapts to complex landscape water quality with excellent waterproof performance. Optimized low-loss magnetic circuit design elevates overall operation efficiency and slashes daily power costs. Universal coupling interface achieves quick assembly with all 10-inch pump assemblies, providing steady three-phase 380V power for high-volume fountain operation.

FOB Reference Price:

Overview

  • Deehp's 10-inch water-cooled motors are ultra-high-power supporting units for 10SP & 10QP fountain pumps, power coverage 22kW–110kW for super-large lake fountain matrices. Optimized internal circulation cooling structure ensures stable performance under long-time heavy-duty operation.

Performance Parameters

  • No. Item No. Power Voltge Current Power fctor Rotte speed Dimeter Length Net Weight
    kW HP V A COSφ rpm mm mm kgs
    1 JSLS10-18.5A 18.5 25 380 41 0.83 2875 222 1062 96
    2 JSLS10-22A 22 30 380 47.4 0.84 2875 222 1082 149
    3 JSLS10-25A 25 34 380 53.5 0.84 2875 222 1102 155
    4 JSLS10-30A 30 40 380 63.8 0.84 2875 222 1137 164
    5 JSLS10-37A 37 50 380 77.8 0.84 2875 222 1177 174
    6 JSLS10-45A 45 60 380 93.5 0.85 2875 222 1242 193
    7 JSLS10-55A 55 75 380 114.3 0.85 2875 222 1317 211
    8 JSLS10-63Z 63 85 380 129.4 0.85 2875 224 1588 280
    9 JSLS10-75Z 75 100 380 154.1 0.85 2875 224 1738 319
    10 JSLS10-90Z 90 125 380 182.8 0.86 2875 224 1858 347
    11 JSLS10-110Z 110 150 380 222.1 0.86 2875 224 2048 400

General features

  • • Oversized cooling water channel design achieves efficient heat transfer, suitable for massive multi-pump fountain projects.
  • • Heavy-duty stainless steel casing with outstanding mechanical strength and anti-corrosion property.
  • • Broad power spectrum meets ultra-large flow requirements of 10SP125/160 and casting 10QP series pumps.
  • • Premium fluorine rubber sealing system as standard to adapt complex outdoor water environments.
  • • Low-loss magnetic circuit design improves overall motor efficiency and cuts operational electricity cost.

  • • Standard coupling structure for quick matching with all 10-inch pump assemblies.

Operating Limits

  • • Maximum water temperature: ≤35°C

    • Max allowable solid particle diameter in water: ≤0.2mm

    • Maximum submersible depth: ≤150m

    • Rated rotating speed: 2850r/min

    • Standard operating voltage: 3-phase 380V
