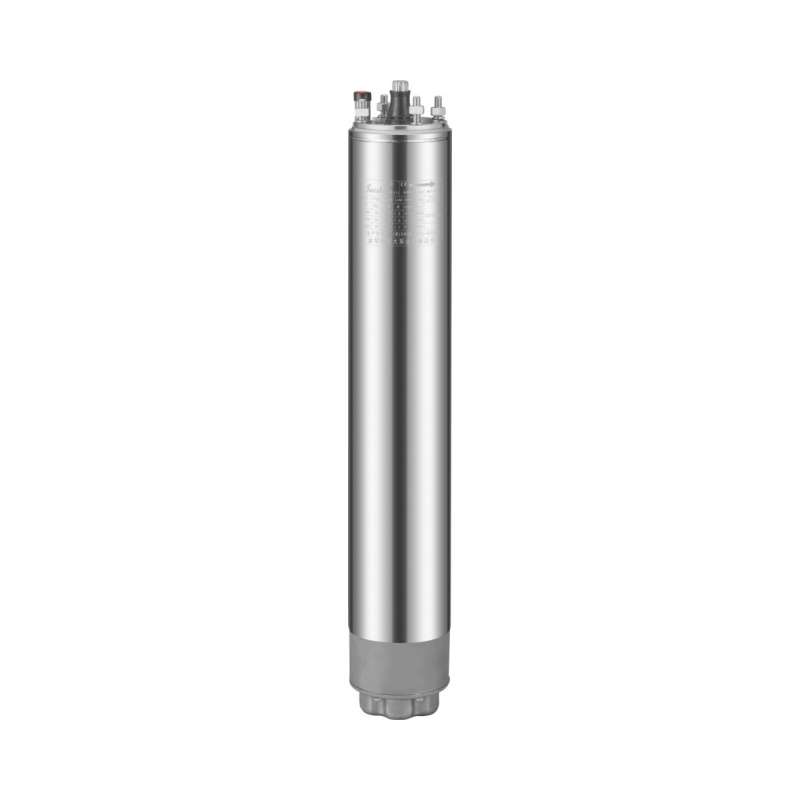

Encapsulated Motor

• Deehp Encapsulated Submersible Motors adopt integrated full resin encapsulation design. High-insulation resin fully wraps stator windings to achieve reliable waterproofing and powerful anti-sand performance.

  ✅ Full resin sealed winding structure

  ✅ F-class insulation & efficient underwater cooling

  ✅ Precision balanced rotor for low vibration running

  ✅ Multi-layer sealing to prevent water penetration

  These motors maintain stable efficiency during long continuous operation, perfectly matching deep well pumps for residential water supply, agricultural irrigation and industrial water extraction.


•

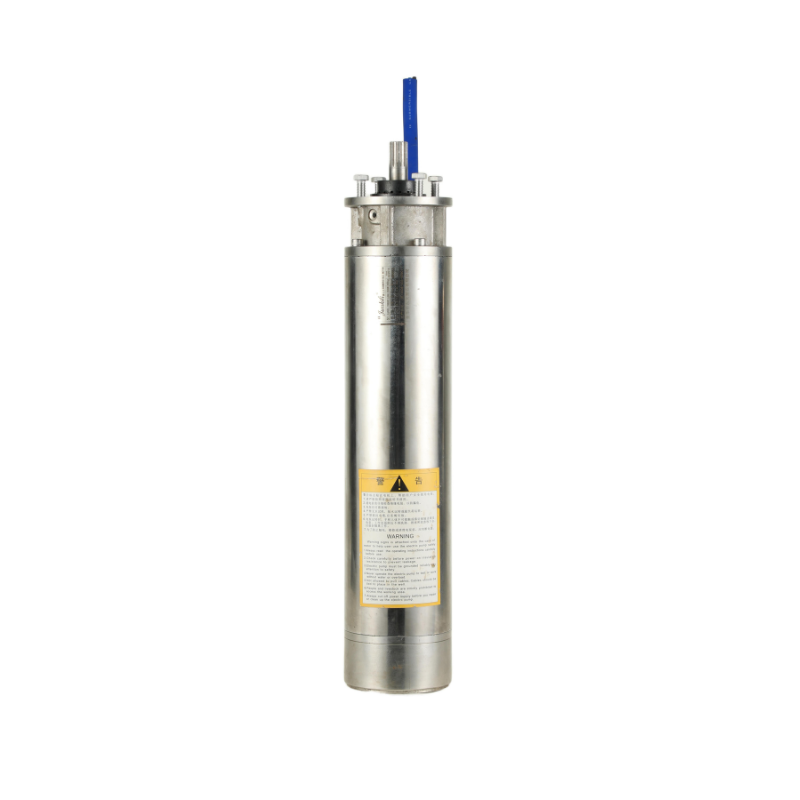

  4-Inch Encapsulated Submersible Motors



  6-inch Encapsulated Submersible Motors

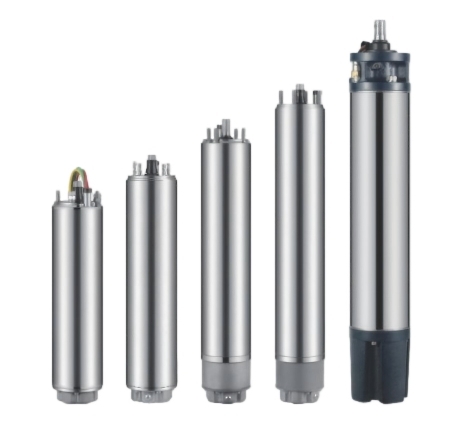

• Deehp offers mature 4-inch and 6-inch encapsulated submersible motor series, covering single-phase and three-phase, diverse voltage options. Built with stainless steel housing and multi-layer sealing construction, each motor passes rigorous load and insulation testing before delivery. Low vibration, long service life and minimal maintenance help global distributors and end users cut overall operating costs.


• Product Overview

  Water-cooled motors feature an encapsulated resin-filled stator.

  Coupling dimensions and flange comply with NEMA standards.

  Technical Features

  Encapsulated resin-filled stator.

  Motor case: SS304. Motor shaft: SS304.

  Shaft end and coupling: NEMA Standard.

  Winding: Enameled copper with Class F insulation.

  Insulation class: Class B; Protection class: IP68.

  Max. operating temperature: 35°C, with a minimum water cooling flow of 0.08 m/s. Maximum immersion depth: 150 m.

  Number of starts per hour: up to 30 at regular intervals.

  Equipped with labyrinth seal, sand slinger and lip seal.

  Coolant: water and propylene glycol.

  Removable lead cable.

  Motor cable length: 1.75 to 4 m, depending on motor size (3 wires plus ground). Allowable voltage variation: +6% / -10%.

  Single-phase motors are available in both CSCR and PSC versions.

•

• Motor Range Versions:

  4" Encapsulated submersible motor

  Single-phase: 0.37 kW (0.5 hp) to 2.2 kW (3hp), 220–230 V /50 Hz (or 60 Hz). Three-phase: 0.37 kW (0.5 hp) to 7.5 kW (10 hp), 380–415 V /50 Hz – 460 V /60 Hz. Axial thrust rating:

  ● 1500 N for 0.37 kW ~ 0.75 kW models

  ● 3000 N for 1.1 kW ~ 2.2 kW models

  ● 6500 N for 3 kW ~ 7.5 kW models



  6" Encapsulated submersible motor

  Three-phase: 4 kW (5.5 hp) to 37 kW (50 hp), 380 V /50 Hz, or 220 V/380 V/460 V /60 Hz. Other voltages and frequencies are available upon request.



  Applied Advantage

  ● High motor efficiency

  ● Over-temperature protection

  ● Upper thrust protection

  ● Built-in cooling chamber

  ● Reduced risk of short circuit

  ●  Shaft sealing



  Applied Range

  ● Irrigation

  ● Fountain projects

  ● Booster systems

  ● Domestic water supply

  ●  Industrial water supply

  ● Groundwater pumping




• Reliable Components & Design Advantages

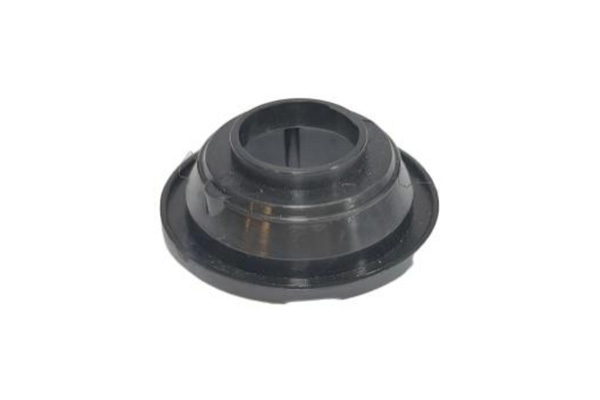

  Slinger (Sand guard)

  The slinger (sand guard) prevents sand in well water from entering the mechanical seal and penetrating into the motor interior.

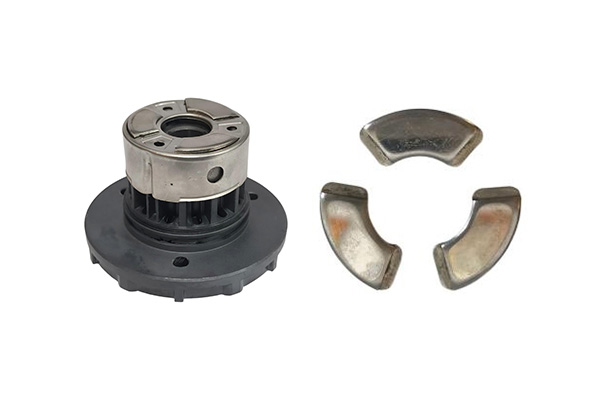

  Heavy thrust capacity

  Heavy-duty bearings support bidirectional rotation and withstand high thrust loads.

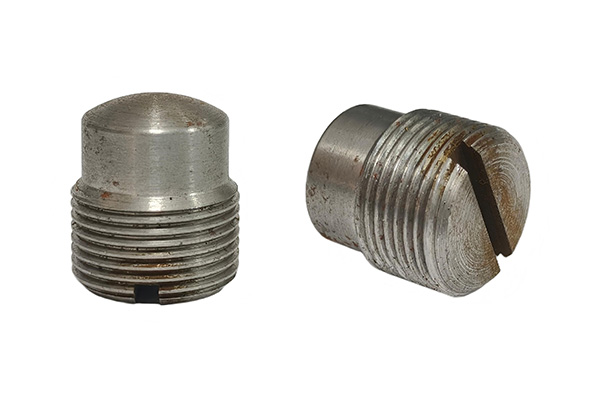

  Adjustment screw

  The standard shaft height can be precisely adjusted via the adjustment screw on the thrust bearing base.

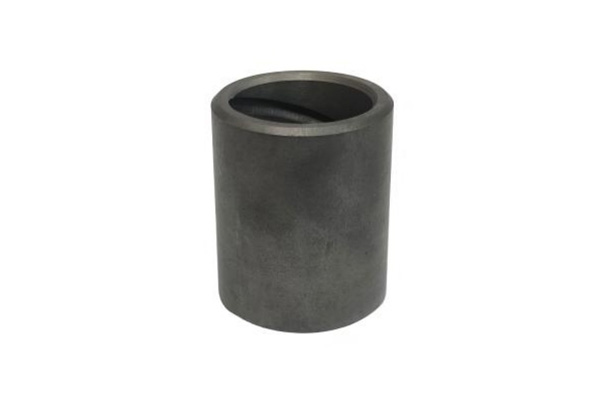

  Graphite bearing

  The graphite bearing features internal channels for easy water lubrication, and accurately guides the rotor shaft during up-and-down movement.

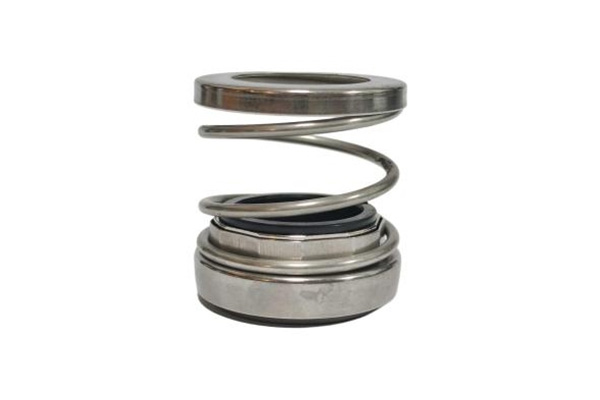

  High quality mechanical sealing system

  High sand resistance with IP68 protection class. While many manufacturers treat the mechanical seal as an optional part, Deehp equips it as standard to block sand and particles from entering the motor and extend bearing service life.

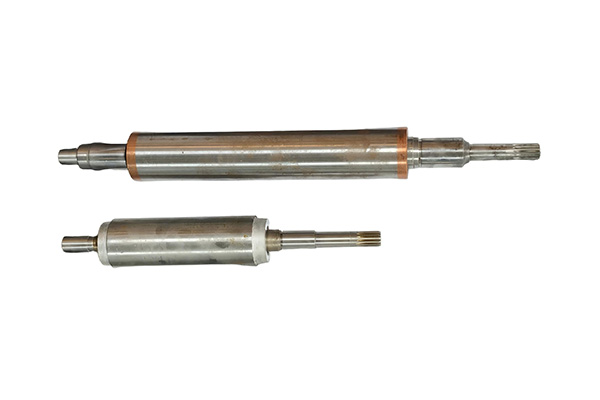

  Core component: Rotor

  High-performance core component to boost efficiency, save energy and reduce environmental impact.

•


• • Q1. What is an encapsulated submersible motor?

    An encapsulated motor uses a resin-encapsulated winding structure to provide electrical insulation and protection for underwater operation.

  • Q2. What are the advantages of an encapsulated motor?

    The design provides good insulation, waterproof protection, compact construction and reliable operation in submersible applications.

  • Q3. What sizes of encapsulated motors does Deehp offer?

    Deehp offers encapsulated motor options for different submersible pump sizes, including 4-inch and 6-inch configurations.

  • Q4. Are Deehp encapsulated motors available in single-phase and three-phase versions?

    Yes. Available electrical configurations depend on the specific motor model.

  • Q5. Can Deehp encapsulated motors be matched with other pump brands?

    Compatibility depends on motor power, shaft dimensions, mounting interface, speed and other technical specifications.
