6-inch oil-cooled motor

Home / Oil Cooled Motor / 6-inch oil-cooled motor

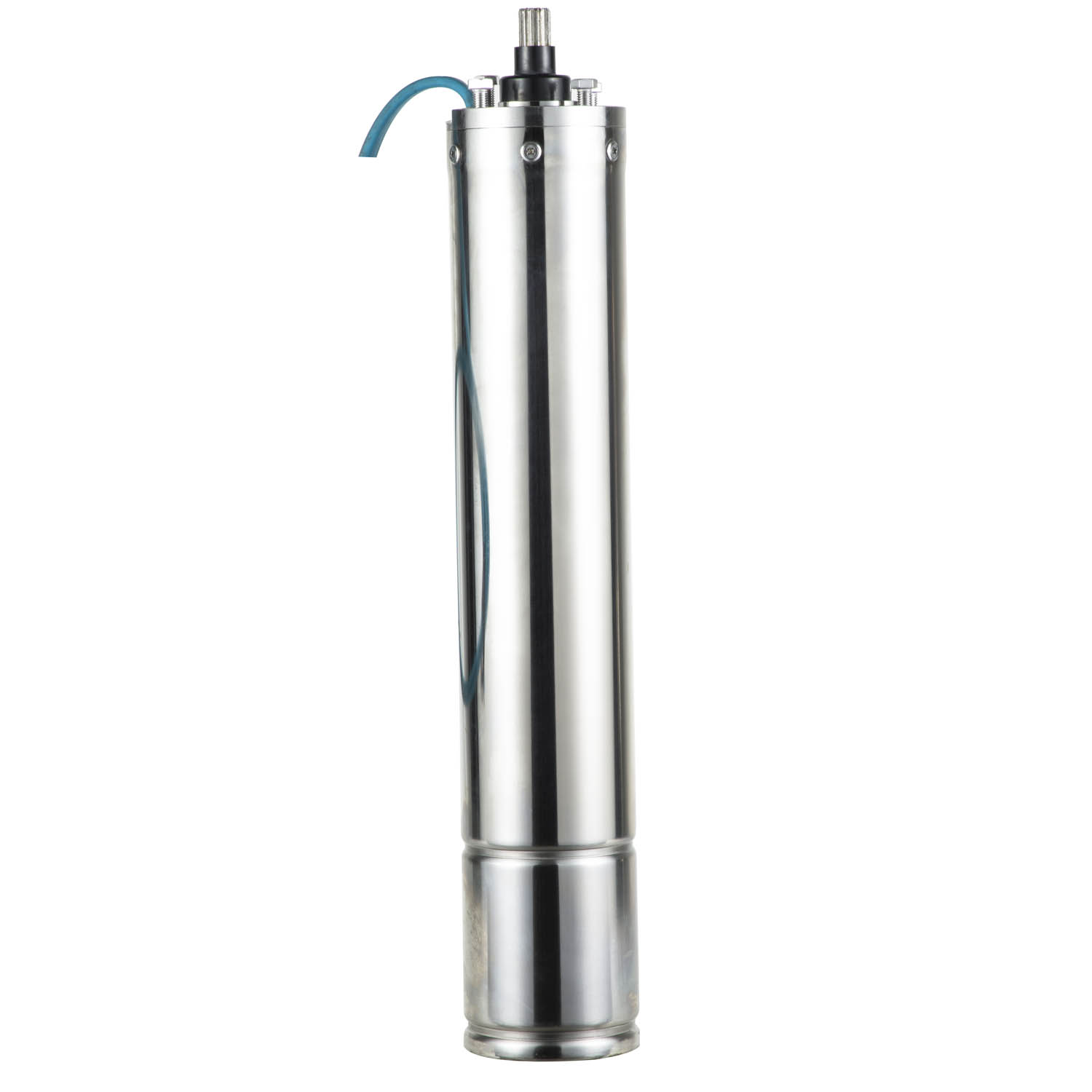

  • oil-cooled-electric-motor.jpg
Product Model:

6-inch oil-cooled motor

6-inch oil-cooled motor

  • Deehp's high-load encapsulated 6-inch oil-cooled motor matched to mid-large flow 6SP fountain pumps with power span 5.5kW–37kW. Following Deehp’s core concept of Deep·Encapsulated·Efficiency·Pump, the optimized large-capacity oil circulation system enhances heat exchange efficiency under continuous medium loads, ideal for regular daily running of lake and square musical fountains. This robust Deehp thickened SS304 housing offers superior rust resistance for long-term underwater immersion. Reinforced composite isolation membrane and optional fluorine rubber seals adapt to slightly turbid landscape water. Deehp high-efficiency silicon steel stator and rotor reduce power loss, while unified coupling flange enables fast on-site assembly with all 6SP pump models. Every Deehp motor undergoes strict factory testing; stable 2850rpm rated speed guarantees consistent fountain lift and flow output with reliable long-term service life.

FOB Reference Price:

Overview

  • This 6-inch oil-cooled submersible motor designed by Deehp is customized to pair with 6SP large-flow fountain pumps, covering power from 5.5kW to 37kW for large-scale lake and musical fountain projects. Its enhanced oil circulation cooling system supports stable long-hour operation under high-load working conditions.

Performance Parameters

  • No. Item No. Power Voltage Current Power factor Rotate speed Length Net Weight
    kW HP V A COSφ rpm mm kgs
    1  JSL(Y)6-4.0 4  5.5 380  9.2  0.8  2860  608  31
    2  JSL(Y)6-5.5 5.5  7.5 380  129  0.83  2860  658  34.5
    3  JSL(Y)6-7.5 7.5  10 380  16.5  0.83  2860  708  39.2
    4  JSL(Y)6-9.2 9.2  12.5 380  19.5  0.85  2860  783  46.5
    5  JSL(Y)6-11 11  15 380  23  0.85  2870  833  51.3
    6  JSL(Y)6-13 13  18 380  26.3  0.86  2870  883  56.4
    7  JSL(Y)6-15 15  20 380  31  0.86  2870  933  61.5

General features

  • • Optimized large-volume oil cooling circulation structure for efficient heat dissipation under heavy continuous loads.
  • • Robust SS304 stainless steel casing resists water erosion, suitable for long-term outdoor large water feature operation.
  • • Wide high-power range perfectly matches 6SP17/30/46/60 pumps with large flow and high head requirements.
  • • Reinforced composite isolation membrane and fluorine rubber optional seals improve waterproof performance.
  • • High-efficiency silicon steel stator & rotor raise operation efficiency and cut long-term energy costs.

  • • Unified interface design for quick coupling with 6SP pump bodies, convenient for mass project installation.

Operating Limits

    1. • Maximum water temperature: ≤35°C
    2. • Max allowable solid particle diameter in water: ≤0.2mm
    3. • Maximum submersible depth: ≤150m
    4. • Rated rotating speed: 2850r/min
    5. • Available voltage: Single-phase 220V / Three-phase 380V
