6-inch water-cooled motor

Home / Water Cooled Motor / 6-inch water-cooled motor

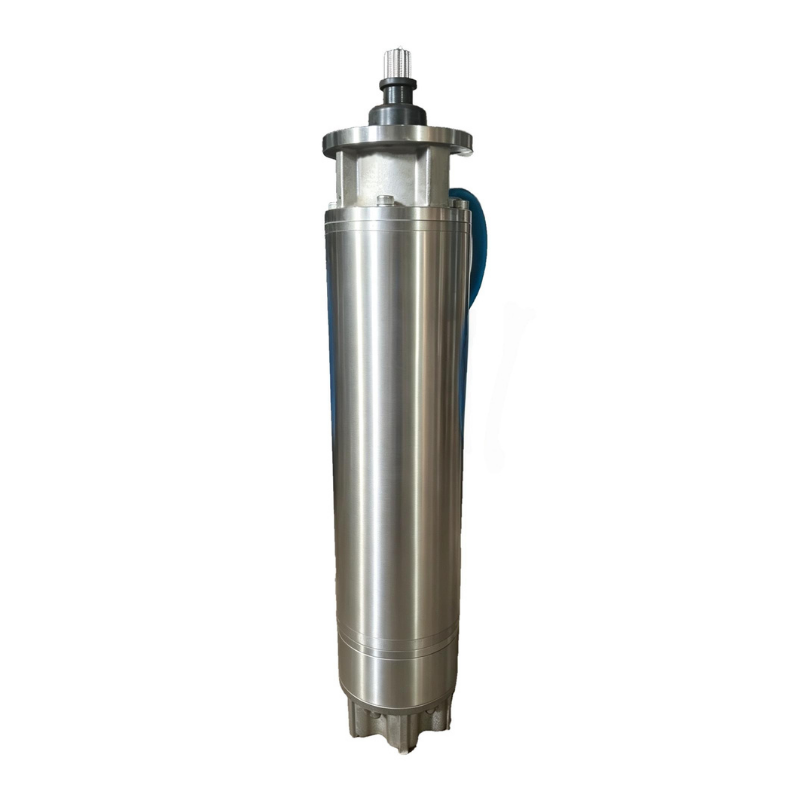

  • water-cooled-motor.png
Product Model:

6-inch water-cooled motor

6-inch water-cooled motor

  • Deehp‘s professional circulating water-cooled motor engineered for heavy-duty 6SP fountain pumps, outperforming oil-cooled types in sustained non-stop operation. Built-in integrated water jacket creates continuous internal cooling loop with far faster heat dissipation, perfectly fit for all-day running large musical fountain projects. Premium high-density silicon steel core boosts motor efficiency and lowers long-term electricity expenditure. Full SS304 stainless construction plus multi-stage waterproof sealing system effectively blocks water ingress; fluorine rubber O-rings are available for mildly corrosive water conditions. Heavy-duty graphite bearing assembly minimizes shaft friction and extends service cycle. Standardized connecting structure supports seamless pairing with all 6SP pump variants, with strict full performance inspection to ensure steady 380V three-phase output.

FOB Reference Price:

Overview

  • This Deehp's water-cooled motor is the dedicated power unit for full 6SP stainless fountain pump series, with power range 5.5kW–37kW for medium & large musical fountain systems.Internal water circulation cooling design enables sustained heavy-load operation for extended running hours.

Performance Parameters

  • No. Item No. Power Voltge Current Power fctor Rotte speed Dimeter Length Net Weight
    kW HP V A COSφ rpm mm mm kgs
    1 JSLS6-3A
    		 3 4 380 7.8 0.78 2850 140 781 52.5
    2 JSLS6-4A
    		 4 5.5 380 10.1 0.79 2850 140 791 53.5
    3 JSLS6-5.5A
    		 5.5 7.5 380 13.7 0.8 2850 140 821 56.5
    4 JSLS6-7.5A
    		 7.5 10 380 18.5 0.8 2850 140 881 62.5
    5 JSLS6-9.2A
    		 9.2 12.5 380 22.1 0.81 2850 140 921 67
    6 JSLS6-11A
    		 11 15 380 26.3 0.81 2850 140 1001 74
    7 JSLS6-13A
    		 13 18 380 30.7 0.81 2850 140 1041 77
    8 JSLS6-15Z 15 20 380 35 0.81 2850 145 1114 80
    9 JSLS6-18.5Z 18.5 25 380 42.6 0.82 2850 145 1184 86
    10 JSLS6-22Z 22 30 380 50.3 0.82 2850 145 1269 88
    11 JSLS6-25Z 25 34 380 57.2 0.82 2850 145 1364 92
    12 JSLS6-30Z 30 40 380 67.4 0.83 2850 145 1454 101
    13 JSLS6-37Z 37 50 380 83.1 0.83 2850 145 1614 119

General features

  • • Built-in circulating water jacket cooling system, far better heat exchange than oil cooling under continuous high-load operation.
  • • High-efficiency silicon steel stator & rotor core, low power loss and stable power factor for long-term energy saving.
  • • SS304 stainless motor housing, anti-rust and erosion-proof for outdoor lake and landscape water.
  • • Multi-stage waterproof structure with optional FKM fluorine rubber seals for slightly corrosive water quality.
  • • Reinforced graphite bearing assembly, lower friction and longer service life with minimal maintenance.
  • • Standard coupling interface fully compatible with all 6SP pump bodies for fast on-site assembly.

  • • 100% full performance test before factory delivery to guarantee consistent output performance.

Operating Limits

  • • Maximum water temperature: ≤35°C

    • Max allowable solid particle diameter in water: ≤0.2mm

    • Maximum submersible depth: ≤150m

    • Rated rotating speed: 2850r/min

    • Standard operating voltage: 3-phase 380V
