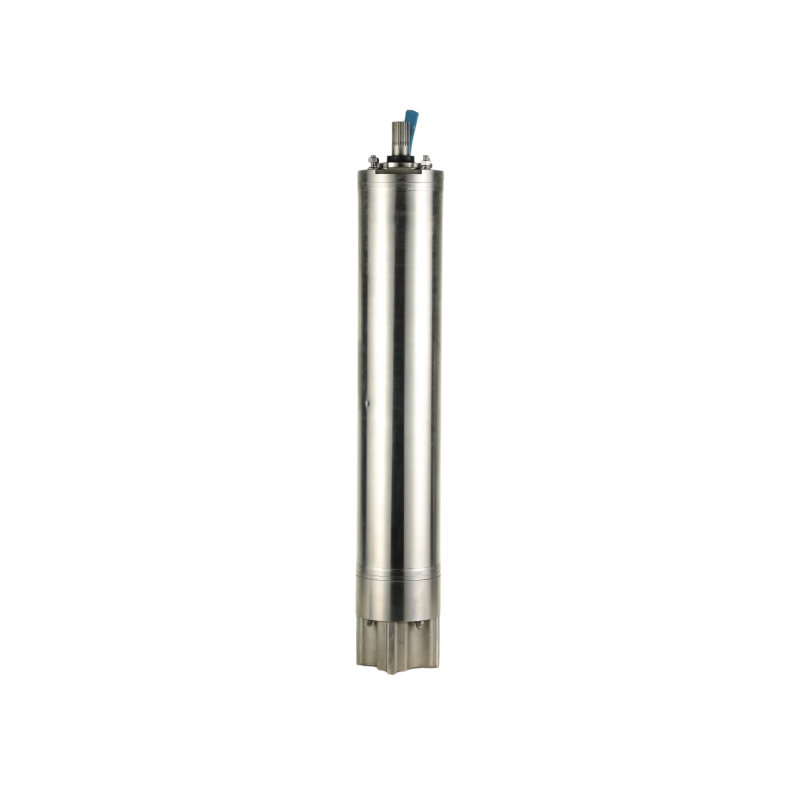

8-inch water-cooled motor

Home / Water Cooled Motor / 8-inch water-cooled motor
  • water-cooled-motors.png
Product Model:

8-inch water-cooled motor

8-inch water-cooled motor

  • Ultra-high power 8-inch water-cooled drive from Deehp is designed for large-flow 8SP77/8SP95 landmark fountain pumps (40kW–100kW). Enlarged built-in cooling water channels deliver powerful heat exchange to withstand 24-hour full-load operation of scenic water show systems. Extra-thick stainless steel shell boasts exceptional structural strength to resist underwater water impact and long-term corrosion. Double-layer waterproof isolation membranes plus multi-channel sealing greatly reduce leakage risks. Custom heavy-duty wear-resistant bearing set is specially designed for constant high-flow, high-load working scenarios. Universal connecting flange simplifies mass installation for large fountain matrices, maintaining stable 2850rpm rotational speed and consistent hydraulic performance.

FOB Reference Price:

Overview

  • Deehp's 8-inch water-cooled motors are high-power matched drives for 8SP large-flow fountain pumps, covering 40kW–100kW for landmark and large-scale show fountains. Large-volume internal cooling loop delivers reliable heat dissipation under non-stop full-load working conditions.

Performance Parameters

  • No. Item No. Power Voltge Current Power fctor Rotte speed Dimeter Length Net Weight
    kW HP V A COSφ rpm mm mm kgs
    1 JSLS8-22A 22 30 380 48.5 0.83 2850 183 1122 124.5
    2 JSLS8-25A 25 34 380 54.5 0.83 2850 183 1192 131.5
    3 JSLS8-30A 30 40 380 65.4 0.83 2850 183 1257 145.5
    4 JSLS8-37A 37 50 380 78.7 0.84 2850 183 1337 163
    5 JSLS8-45A 45 60 380 95.8 0.84 2850 183 1452 202
    6 JSLS8-55A 55 75 380 116.4 0.84 2850 183 1612 217
    7 JSLS8-63Z 63 85 380 133.3 0.84 2850 193 1805 283
    8 JSLS8-75Z 75 100 380 156.8 0.85 2850 193 1905 304
    9 JSLS8-90Z 90 125 380 187.1 0.85 2850 193 1995 323
    10 JSLS8-110Z 110 150 380 228.6 0.85 2850 193 2115 349

General features

  • • Enlarged water flow jacket structure for powerful heat dissipation, ideal for 24-hour continuous operation of scenic water shows.
  • • Thickened stainless steel shell with high structural strength, resisting water impact and long-term underwater immersion.
  • • Wide high-power range perfectly fits 8SP77 & 8SP95 pumps with ultra-large flow demands.
  • • Double-layer isolation membrane + multi-channel O-ring sealing, greatly reducing water leakage risk.
  • • Heavy-duty wear-resistant bearing set designed for long-period high-flow, high-load running.

  • • Universal connection flange matching all 8SP pump models to simplify project installation.

Operating Limits

  • • Maximum water temperature: ≤35°C

    • Max allowable solid particle diameter in water: ≤0.2mm

    • Maximum submersible depth: ≤150m

    • Rated rotating speed: 2850r/min

    • Standard operating voltage: 3-phase 380V
