6-inch Encapsulated Submersible Motors

Home / Encapsulated Motor / 6-inch Encapsulated Submersible Motors

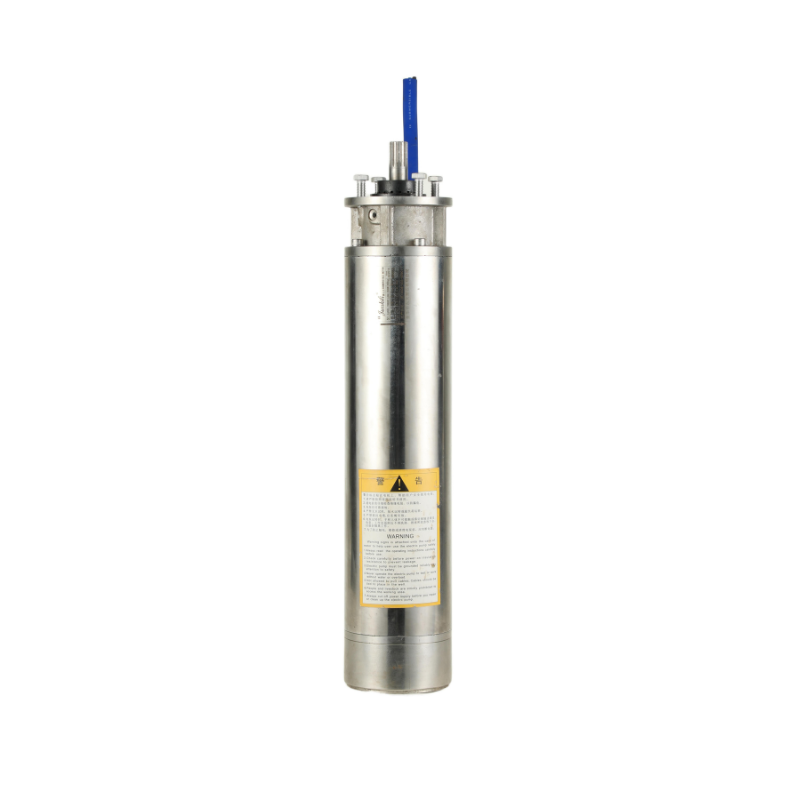

  • 4-inch-encapsulated-submersible-motors.png
Product Model:

6-inch Encapsulated Submersible Motors

6-inch Encapsulated Submersible Motors

    • Deehp's water cooled motors with encapsulated resin filled stator.

      Coupling dimensions and flange according to NEMA standard.

      Built with the latest design, manufacturing and testing technology, the submersible motors feature laser-welded 304L stainless steel construction, higher thrust capacities, and higher efficiencies. They incorporate encapsulated, epoxy stator design, and the professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards

FOB Reference Price:

Overview

  • Water systems from Deehp for residential, industrial, commercial, multiple housing and farm clean water use.

    Materials available for the head: stainless steel, iron and copper. (The images shows the stainless steel version)

Performance Parameters

  • Type Rated Power Axial Load Voltage Rated Speed Rated Current Maximum Current Efficiency (% load) Cos φ (%load) TN TA
    HP KW kN V rpm A A 50 75 100 50 75 100 Nm Nm
    NFP6C/4 5.5 4 20 380 2850 9.2 34.0 78.5 80.3 79.0 0.75 0.82 0.83 13.4 18.0
    NFP6C/5.5 7.5 5.5 20 380 2770 12.4 48.0 78.5 80.3 78.3 0.80 0.83 0.86 18.8 28.7
    NFP6C/7.5 10 7.5 20 380 2840 16.5 69.0 77.7 80.5 80.2 0.76 0.83 0.86 25.0 44.2
    NFP6C/9.3 12.5 9.3 20 380 2840 20.3 94.6 79.6 81.8 80.5 0.76 0.83 0.87 31.2 56
    NFP6C/11 15 11 20 380 2840 23.6 90.0 80.3 82.6 81.0 0.77 0.82 0.87 37.0 70
    NFP6C/13 17.5 13 20 380 2860 27.6 145.2 79.8 82.3 81.5 0.80 0.84 0.87 43.5 85
    NFP6C/15 20 15 20 380 2845 32.1 181.0 80.1 82.6 81.5 0.79 0.85 0.87 50.3 98
    NFP6C/18.5 25 18.5 20 380 2860 40.5 246.0 79.4 82.3 82.0 0.77 0.82 0.85 61.6 137
    NFP6C/22 30 22 20 380 2850 47.5 279.0 81.2 83.2 82.2 0.78 0.84 0.86 73.6 157
    NFP6C/26.5 35 26.5 26 380 2850 57.9 338.0 81.7 83.7 82.5 0.76 0.81 0.84 88.7 193
    NFP6C/30 40 30 26.5 380 2870 64.5 412.0 80.2 82.9 83.0 0.77 0.83 0.85 99.2 239
    NFP6C/37 50 37 26.5 380 2860 80.0 478.0 80.3 82.8 83.0 0.75 0.81 0.85 124 248

General features

  • • 0.5-10HP, single or three phase, 220-380V voltage/50HZ

    • Hign efficiency saving the operation cost

    • Motor casing and shaft made of AISI 304 stainless steel( optional AISI316)

    • High resistance 304 stainless steel upper and lower bracket

    • Hermetically sealed stator using anti-track, self-healing resin

    • Water lubricated Kingsbury type thrust bearings

    • Sand slinger and shaft seal for high performance in sand

    • Protection class: IP68

    • Sand slinger protection

    • Pressure equalizing diaphragm

    • Insulation class F

    • Removable lead cable

    • All motors prefilled and 100% tested

Operating Limits

  • •  Max.voltage fluctuation: ±10%

    •  Max. water temperature: 35℃ with at least 0.16m/s of water flow speed

    •  Standard mounting position: vertical and horizontal

    •  Special Lead lengths up to 50m

    •  Built-in PTC temperature sensor
