4SP5 Series

Home / Fountain Pump / 4SP5 Series

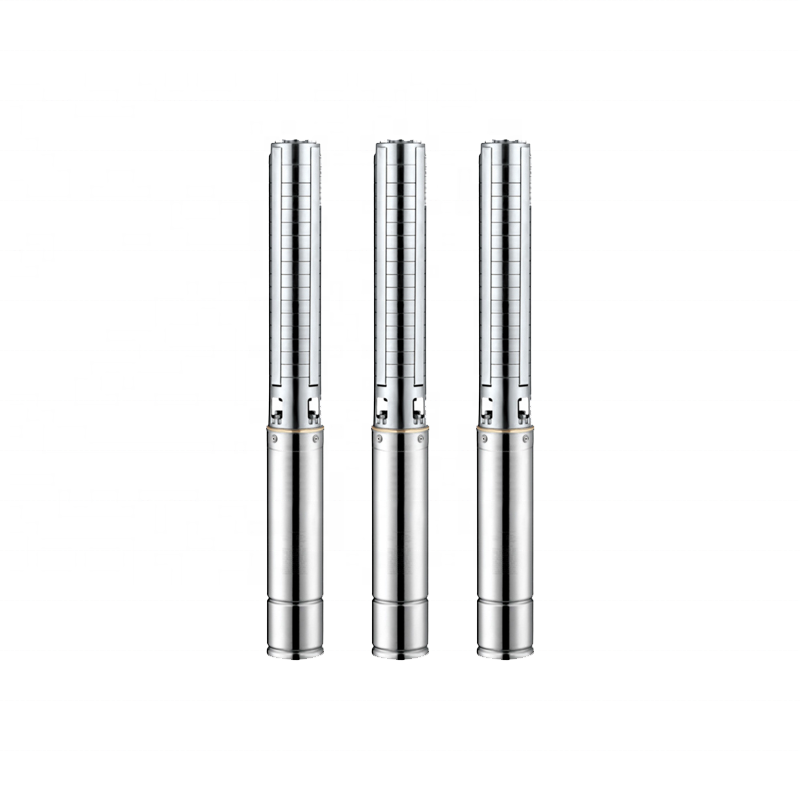

  • submersible-fountain-pump.png
Product Model:

4SP5 Series

4SP5 Series

  • Deehp’s mainstream medium-flow 4-inch fountain pump delivers a stable 5m³/h flow output, perfectly designed for multi-nozzle small fountain groups. Featuring smooth stamped SS304 hydraulic surfaces, this Deehp pump effectively reduces mineral scale buildup under hard water environments. Its slim narrow barrel structure fits seamlessly into modular precast fountain systems. Fully compatible with DEEHP 0.37kW–7.5kW 4-inch oil-cooled submersible motors, multiple stage combinations provide adjustable head coverage from 14m to 252m, ideal for community bubbling springs and medium-scale courtyard water curtain landscapes.

FOB Reference Price:

Overview

  • Deehp’s 4SP5 sub-series is a stainless steel submersible fountain pump with a uniform 4-inch outer barrel diameter, fixed rated flow of 5 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this DEEHP sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,4SP5-6

    4 —— pump size (inches),

    SP —— pump series,

    5 —— rated flow rate (m³/h),

    6 —— 6 impeller stages

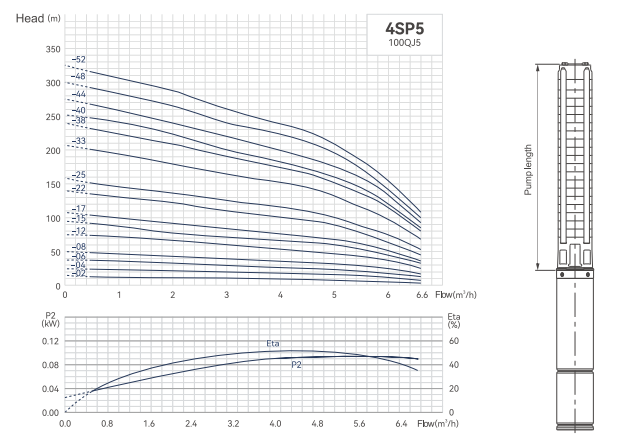

Performance Parameters

  • MOTOR PUMP MODEL MOTOR DELIVERY (n≈2850r/ min) OUTLET DIAMETER
    KW HP FLOW m/h 0 1 2 3 5 6 6.6
    4SP5-04 0.37 0.5 HEAD (m) 25 24 22 20 16 12 8 DN 40 1"/2"
    4SP5-06 0.55 0.75 38 36 33 30 24 18 13
    4SP5-08 0.75 1 50 47 44 40 32 24 17
    4SP5-12 1.1 1.5 76 72 67 60 48 36 25
    4SP5-17 1.5 2 107 99 91 85 68 51 36
    4SP5-22 2.2 3 139 130 122 110 88 66 46
    4SP5-25 2.2 3 159 145 137 125 100 75 53
    4SP5-33 3 4 208 192 182 165 132 99 69
    4SP5-38 4 5.5 239 220 209 190 152 114 80
    4SP5-40 4 5.5 252 241 _223 200 160 120 84
    4SP5-44 4 5.5 275 259 242 220 176 132 92
    4SP5-52 5.5 7.5 326 302 287 260 208 156 109
  • PUMP MODEL MOTOR SIZE [mm] WE IGHT
    KW A(220V)[ A(380V) B(220V] B(380V) C E D B(220V) B(380V) C
    4SP5-04 0.37 596 395 239 96 92 8 1.9
    4SP5-06 0.55 629 626 386 383 281 96 92 8.86 8.12 2.4
    4SP5-08 0.75 696 693 411 408 323 96 92 9.56 9.64 2.8
    4SP5-12 1.1 795 797 426 428 407 96 92 10.82 10.44 3.6
    4SP5-17 1.5 900 902 426 428 512 96 92 10.82 10.44 4,7
    4SP5-22 2.2 1060 1047 481 468 617 96 92 11.88 12.3 5.7
    4SP5-25 2.2 1123 1166 481 524 680 96 92 11.88 12.3 6.4
    4SP5-33 3 1348 1334 538 524 848 96 92 13.96 13.9 8
    4SP5-38 4 1497 582 953 96 92 18.8 9.1
    4SP5-40 4 1539 582 995 96 92 18.8 9.5
    4SP5-44 4 1688 647 1079 96 92 21.82 10.3
    4SP5-52 5.5 1956 747 1247 26.8 12
