4SP3 Series

Home / Fountain Pump / 4SP3 Series
Product Model:

4SP3 Series

4SP3 Series

  • Deehp’s 4-inch fountain pump features balanced 3m³/h flow and moderate head performance. Adopting full stamped SS304 hydraulic assemblies with optional SS316 components, this Deehp model adapts perfectly to seaside water park environments. Built with an optimized low-noise hydraulic structure, it ensures stable and quiet performance during daily intermittent fountain operation. Its compact slim construction enables easy installation inside small fountain basins.

FOB Reference Price:

Overview

  • Deehp’s 4SP3 sub-series is a stainless steel submersible fountain pump with uniform outer barrel diameter of 4 inch, fixed rated flow of 3 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,4SP3-6

    4 —— pump size (inches),

    SP —— pump series,

    3 —— rated flow rate (m³/h),

    6 —— 6 impeller stages

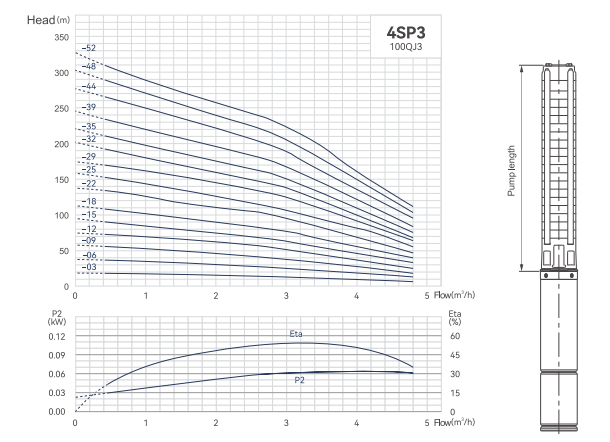

Performance Parameters

  • MOTOR PUMP MODEL MOT OR DELIVERY (n=2850r/ min) OUTLET DIAMETER
    KW HP FLOW m/h 0 1.2 2 3 3.6 4 4.8
    4SP3-6 0.37 0.5 HEAD (m) 38 33 30 26 21 19 13 DN32 1"/4"
    4SP3-09 0.55 0.75 57 50 45 38 31 28 19
    4SP3-12 0.75 1 76 68 60 51 42 37 26
    4SP3-15 1.1 1.5 95 82 74 64 53 46 32
    4SP3-18 1.1 1.5 113 98 89 77 63 56 39
    4SP3-22 1.5 2 139 122 109 94 78 68 47
    4SP3-25 1.5 2 158 140 124 107 90 78 54
    4SP3-32 2.2 3 202 175 158 137 114 99 68
    4SP3-39 3 4 246 213 193 167 139 121 83
    4SP3- 44 3 4 277 242 218 188 154 136 94
    4SP3-52 4 5.5 328 282 257 ?22 189 161 111
  • PUMP MODEL MOTOR SIZE [mm] WEIGHT
    KW A(220V) A(380V) B(220V) B(380V) C E D B(220V) B(380V) C
    4SP3-6 0,37 638 395 281 96 92 8 2.3
    4SP3-9 0.55 692 689 386 383 344 96 92 8.86 8.12 2.9
    4SP3-12 0.75 780 777 411 408 407 96 92 9.56 9.64 3.5
    4SP3-15 1.1 858 860 426 428 470 96 92 10.82 10.44 4.1
    4SP3-18 1.1 921 923 426 428 533 96 92 10.82 10.44 4.7
    4SP3-22 1.5 1060 1047 481 468 617 96 92 11.88 12.3 5.5
    4SP3-25 1.5 1123 11 66 481 524 680 96 92 11.88 12.3 6.1
    4SP3-32 2.2 1327 1313 538 524 827 96 92 13.96 13.9 7.5
    4SP3-39 3 1518 582 974 96 92 18.8 8.9
    4SP3-44 3 1623 582 1079 96 92 18.8 9.9
    4SP3-52 4 1856 647 1247 96 92 21.82 11.4
