4SP14 Series

Home / Fountain Pump / 4SP14 Series
Product Model:

4SP14 Series

4SP14 Series

  • Deehp’s 4-inch large-flow fountain pump is specially engineered for low-lift, large-volume lake floating and bubbling spring effects. Featuring wide impeller channels, this Deehp pump minimizes blockage caused by suspended sediment in natural pond water. Its compact slim barrel enables flexible deployment in shallow fountain ponds. Fully compatible with Deehp 0.37kW–7.5kW 4-inch oil-cooled submersible motors, the optimized low-head hydraulic curve delivers a lift range from 9m to 175m, perfectly catering to wide-area low-lift decorative water surface applications in shallow lakes and ponds.

FOB Reference Price:

Overview

  • Deehp’s 4SP14 sub-series is a stainless steelsubmersible fountain pump with a uniform 4-inch outer barrel diameter, fixed rated flow of 14 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this Deehp sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,4SP14-5

    4 —— pump size (inches),

    SP —— pump series,

    14 —— rated flow rate (m³/h),

    5 —— 5 impeller stages

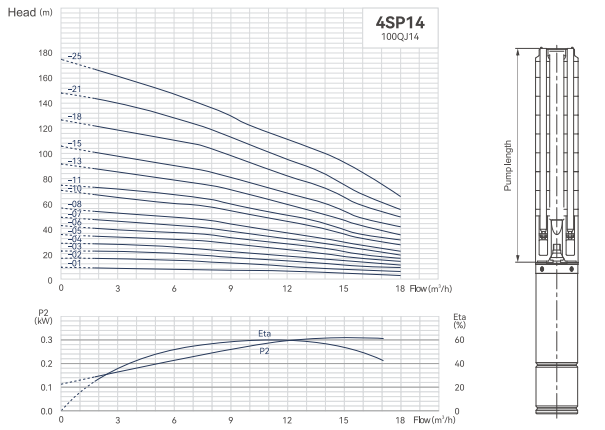

Performance Parameters

  • MOTOR PUMP MODEL MOTOR DELIVERY (n=2850r/min) OUTLET DIAMETER
    KW HP FLOW m/h 0 6 8 10 14 16 18
    4SP14-05 1.5 2 HEAD (m) 35 31 29 26 20 16 14 DN 50 2"
    4SP14-07 2.2 3 49 42 40 35 28 23 19
    4SP14-10 3 4 70 60 57 51 40 32 27
    4SP14-13 4 5.5 91 79 74 67 52 42 35
    4SP14-15 5.5 7.5 105 89 85 76 60 48 41
    4SP14-18 5.5 7.5 126 110 103 91 72 58 49
    4SP14-21 7.5 10 147 128 119 106 84 67 55
    4SP14-25 7.5 10 175 151 143 129 100 80 65
  • PUMP MODEL MOTOR SIZE [mm] WEIGHT
    KW A(220V] A(380V)[ B(220V) B(380V) C E D B(220V) B(380V) C
    4SP14-05 1.5 717 395 502 96 92 8 5.0
    4SP14-07 2.2 792 789 386 383 632 96 92 8.86 8.12 6.2
    4SP14-10 3 943 940 411 408 827 96 92 9.56 9.64 8.2
    4SP14-13 4 1084 1086 426 428 1022 96 92 10.82 10.44 10.1
    4SP14-15 5.5 1168 1170 426 428 1152 96 92 10.82 10.44 11.4
    4SP14-18 5.5 1349 1336 481 468 1347 96 92 11.88 12.3 13.3
    4SP14-21 7.5 1475 1518 481 524 1542 96 92 11.88 12.3 15.3
    4SP14-25 7.5 1700 1686 538 524 1802 96 92 13.96 13.9 17,9
