10SP160 Series

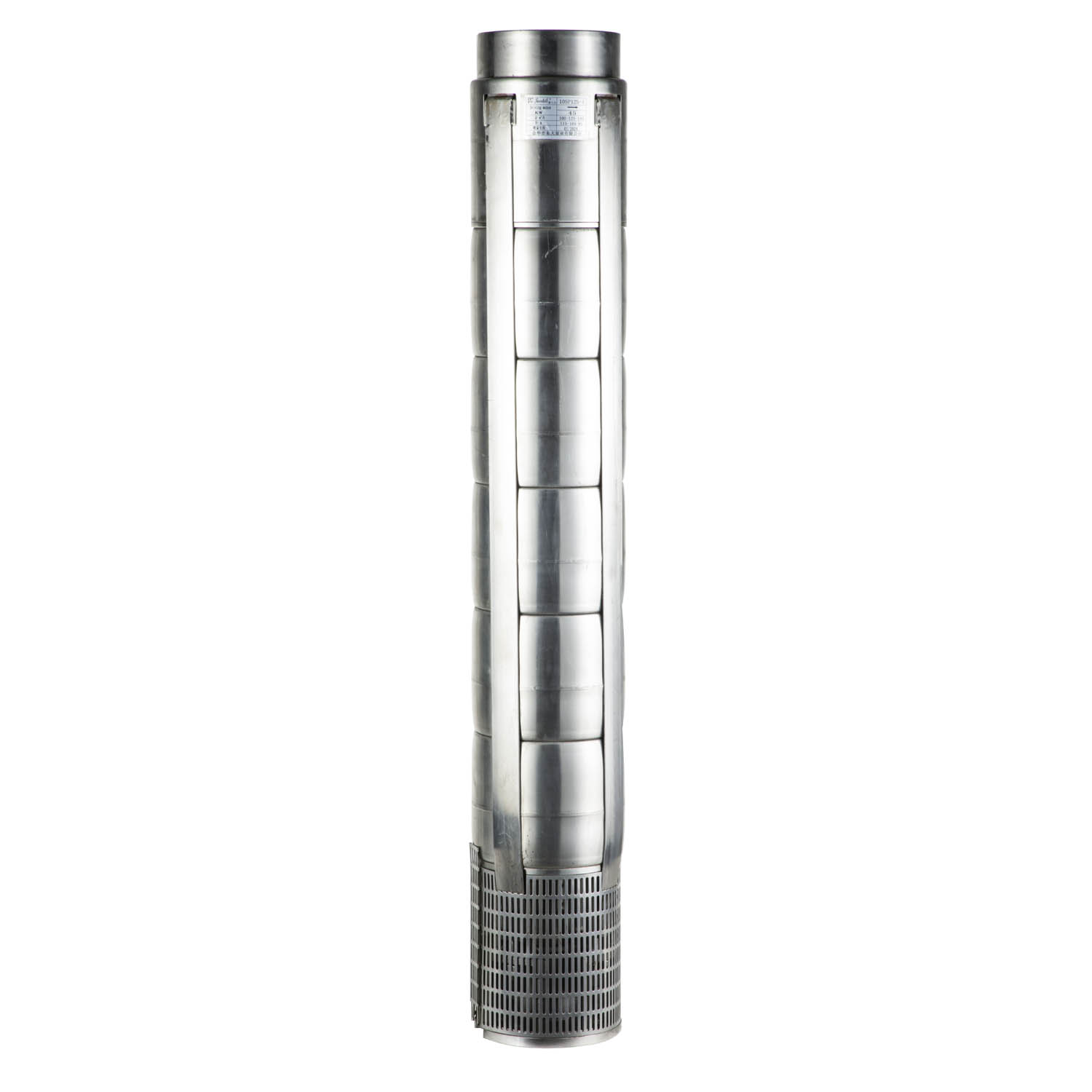

Deehp’s high-flow 10-inch stamped fountain pump delivers a massive water volume of 160m³/h, perfectly suited for wide-area low-lift lake fountain arrays. Equipped with low-resistance wide impeller channels, this Deehp pump drastically reduces silt blockage risks in natural lake water environments. Fitted with a full standard fluororubber sealing kit, it stably handles complex outdoor water conditions containing mineral deposits and algae. Exclusively matched with 50kW–90kW high-power 10-inch water-cooled motors, it provides comprehensive lift coverage from 56m to 207m, enabling the construction of complete giant synchronized all-day water performance systems for super-large cultural tourism lake projects.
Deehp’s 10SP160 sub-series is a stainless steel encapsulated submersible fountain pump with a uniform 10-inch outer barrel diameter, fixed rated flow of 160 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this Deehp sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.
Model Description:
e.g.,10SP160-6
10 —— pump size (inches),
SP —— pump series,
160 —— rated flow rate (m³/h),
6 —— 6 impeller stages

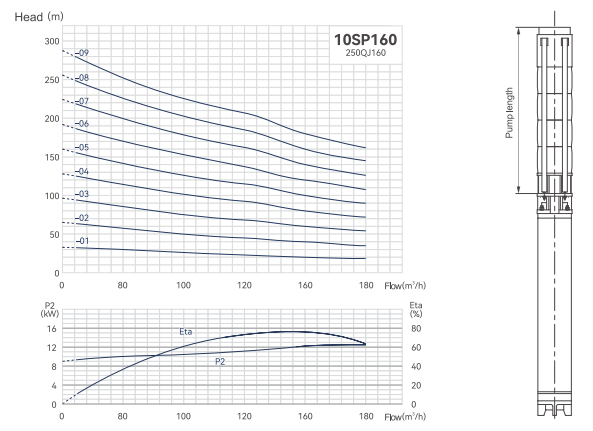

| PUMP MODEL | MOT OR | DELIVERY (n2850r/min) | LENGTH (mm) | WEIGHT (Kg) | OUTLET DIAMETER | |||||||
| KW | HP | FLOW mh | 0 | 50 | 80 | 100 | 125 | 140 | ||||
| 10SP160-01 | 15 | 18.5 | HEAD (m) | 32 | 28 | 25 | 23 | 20 | 18 | 600 | 24.8 | DN150 6" |
| 10SP160-02 | 26 | 40 | 64 | 56 | 50 | 46 | 40 | 36 | 756 | 31.2 | ||
| 10SP160-03 | 37 | 50 | 96 | 84 | 75 | 69 | 60 | 54 | 912 | 37.6 | ||
| 10SP160-04 | 55 | 75 | 128 | 112 | 100 | 92 | 80 | 72 | 1068 | 44 | ||
| 10SP160-05 | 63 | 85 | 160 | 140 | 125 | 115 | 100 | 90 | 1224 | 50.4 | ||
| 10SP160-06 | 75 | 100 | 192 | 168 | 150 | 138 | 120 | 108 | 1380 | 56.8 | ||
| 10SP160-07 | 90 | 125 | 224 | 196 | 175 | 161 | 140 | 126 | 1536 | 63.2 | ||
| 10SP160-08 | 90 | 125 | 256 | 224 | 200 | 184 | 160 | 144 | 1692 | 69.6 | ||
| 10SP160-09 | 110 | 150 | 288 | 252 | 225 | 207 | 180 | 162 | 1848 | 76 | ||
