10SP125 Series

Home / Fountain Pump / 10SP125 Series

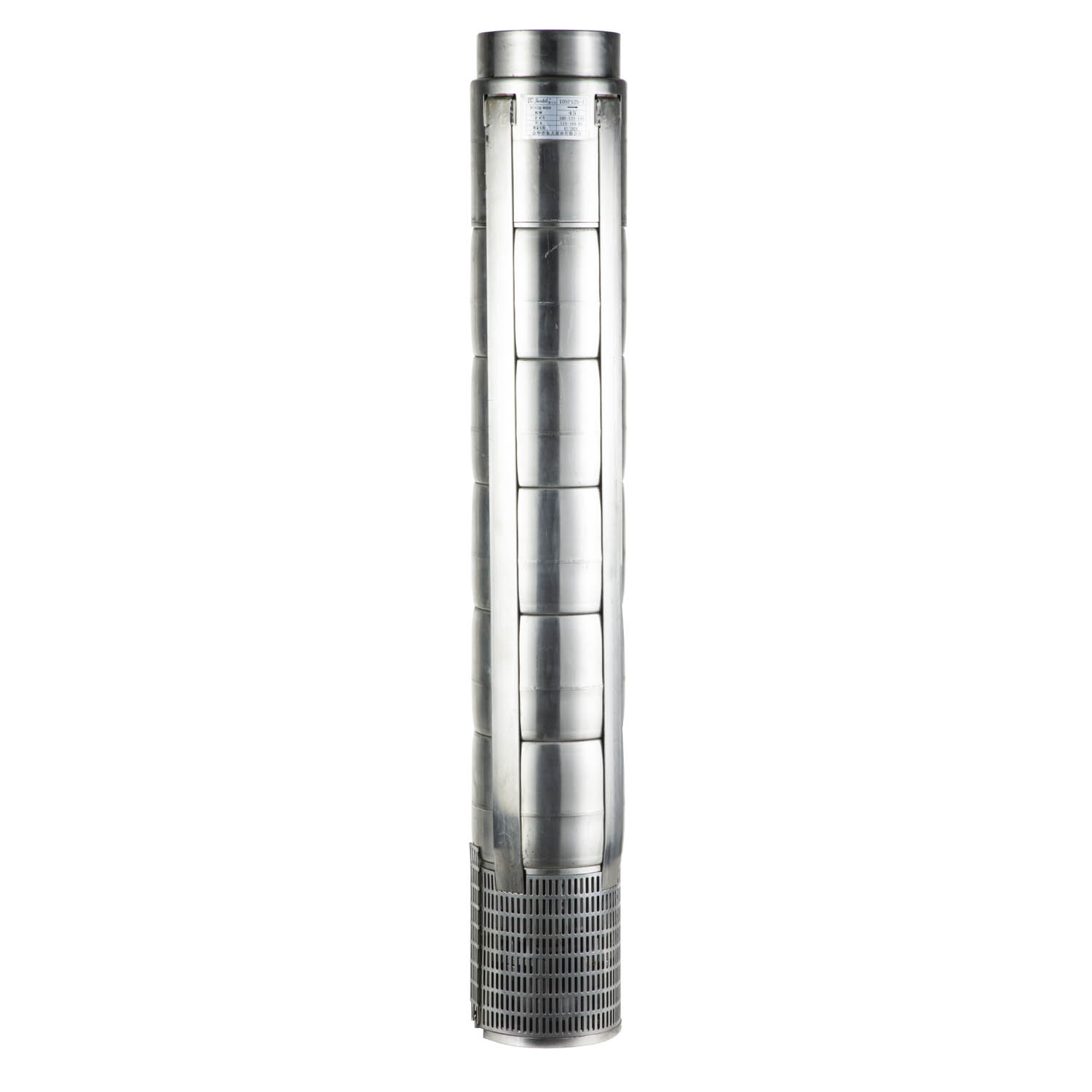

  • brass-fountain-pump.jpg
Product Model:

10SP125 Series

10SP125 Series

  • Deehp’s heavy-duty encapsulated 10-inch fountain pump features a stable ultra-large flow rate of 125m³/h, professionally designed for ultra-large low-lift synchronized multi-group lake fountain matrices. Adopting oversized stamped SS304 hydraulic components with ultra-wide flow channels, this Deehp pump completely prevents sediment blockage in complex water environments. Its extra-heavy stainless steel pump shell maintains outstanding mechanical stability under continuous high-volume water output. Exclusively compatible with 22kW–75kW heavy-duty 10-inch water-cooled motors, it supports flexible lift adjustment ranging from 48m to 216m, ideal for designing large-scale, full-coverage lake fountain layout systems for waterfront landmark cities.

FOB Reference Price:

Overview

  • Deehp’s 10SP125 sub-series is a stainless steel submersible fountain pump with a uniform 10-inch outer barrel diameter, fixed rated flow of 125 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this Deehp sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,10SP125-6

    10 —— pump size (inches),

    SP —— pump series,

    125 —— rated flow rate (m³/h),

    6 —— 6 impeller stages

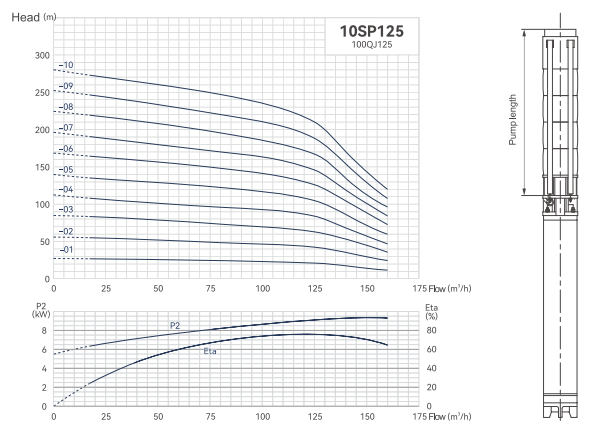

Performance Parameters

  • PUMP MODEL MOT OR DELIVERY (n2850r/min) LENGTH (mm) WEIGHT (Kg) OUTLET DIAMETER
    KW HP FLOW mh 0 50 80 100 125 140 160
    10SP125-01 11 15 HEAD (m) 28 27 24 23 21 17 12 590 24.4 DN150 6"
    10SP125-02 22 30 56 54 48 46 42 34 24 736 30.5
    10SP125-03 30 40 84 81 72 69 63 51 36 882 36.6
    10SP125-04 37 50 112 108 96 92 84 68 48 1028 42.7
    10SP125-05 45 60 140 135 120 115 105 85 60 1174 48.8
    10SP125-06 55 75 168 162 144 138 126 102 72 1320 54.9
    10SP125-07 63 83 196 189 168 161 147 119 84 1466 61
    10SP125-08 75 100 224 216 192 184 168 136 96 1612 67.1
    10SP125-09 90 125 252 243 220 207 189 153 108 1758 73.2
    10SP125-10 110 150 280 270 246 230 210 170 120 1904 79.3
