10QP150 Series

Home / Fountain Pump / 10QP150 Series
  • best-fountain-pumps.png
Product Model:

10QP150 Series

10QP150 Series

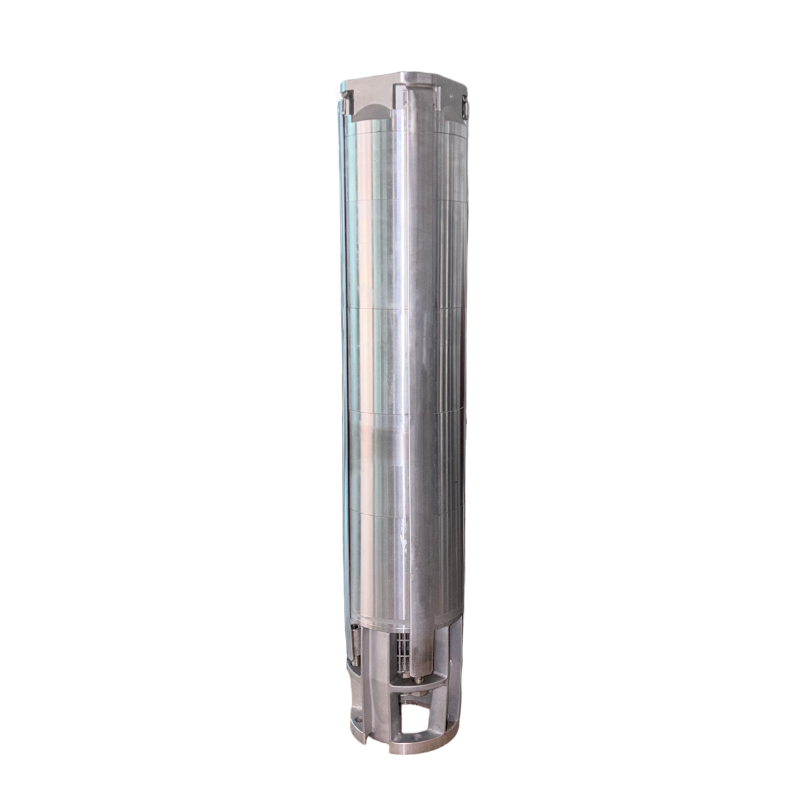

  • Deehp’s high-performance 10-inch cast stainless steel fountain pump stands as the maximum-flow model in the QP series, offering a massive 150m³/h water output. Adopting oversized wide cast flow channels and heavy-duty cast SS304 hydraulic components, it delivers industry-leading anti-clog and anti-abrasion performance, perfectly adapting to natural water containing fine sediment, algae and tiny suspended solids. Exclusively paired with 75kW–110kW ultra-high-power 10-inch water-cooled submersible motors rated for 24-hour non-stop full-load operation, it provides a fully adjustable head range from 56m to 207m. This pump is ideal for constructing complete giant synchronized water performance systems and creating wide-area low-lift water curtain effects for super-large cultural tourism lake landscape projects.

FOB Reference Price:

Overview

  • Deehp’s 10QP150 sub-series is a cast stainless steel submersible fountain pump with a uniform 10-inch outer barrel diameter, fixed rated flow of 150 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this Deehp sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,10QP150-6

    10 —— pump size (inches),

    QP —— pump series,

    150 —— rated flow rate (m³/h),

    6 —— 6 impeller stages

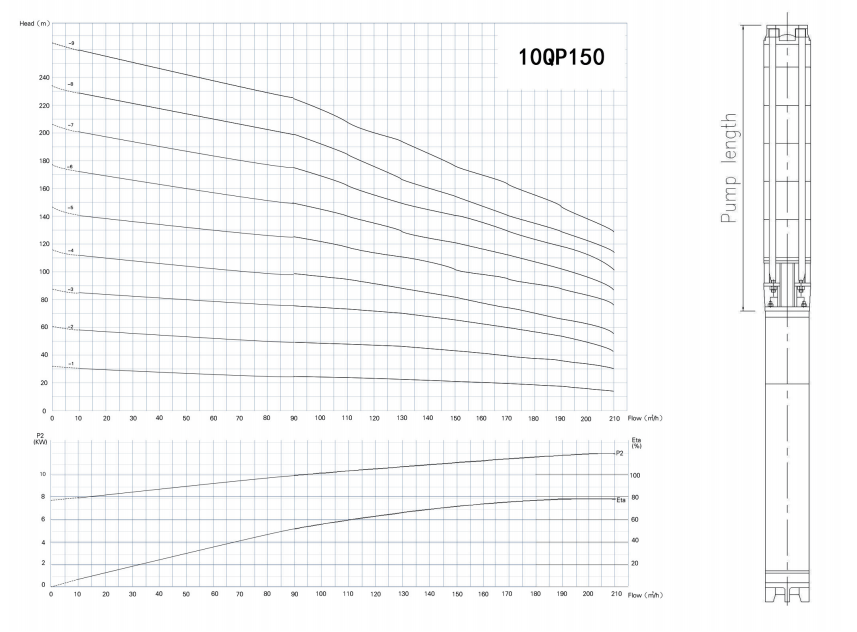

Performance Parameters

  • Model No. Motor Q(m³/h) Flow(n≈2850r/min) Pump Length(mm) Pump Weight(kg) Outlet
    kW HP 90 110 130 140 150 170 190 210
    10QP150-1 13 18 H(m) 25 24 23 21 20 18 17 14 530 25.6 DN150 6"
    10QP150-2 25 34 50 48 46 42 40 36 34 28 690 34.5
    10QP150-3 37 50 75 72 69 63 60 54 51 42 850 43
    10QP150-4 55 75 100 96 92 84 80 72 68 56 1010 51.5
    10QP150-5 63 85 125 120 115 105 100 90 85 70 1170 64
    10QP150-6 75 100 150 144 138 126 120 108 102 84 1330 72.5
    10QP150-7 90 125 175 168 161 147 140 126 119 98 1490 81
    10QP150-8 110 150 200 192 184 168 160 144 136 112 1650 90
    10QP150-9 110 150 225 216 207 189 180 162 153 126 1810 98
