10QP120 Series

Home / Fountain Pump / 10QP120 Series
  • heavy-duty-fountain-pump.png
Product Model:

10QP120 Series

10QP120 Series

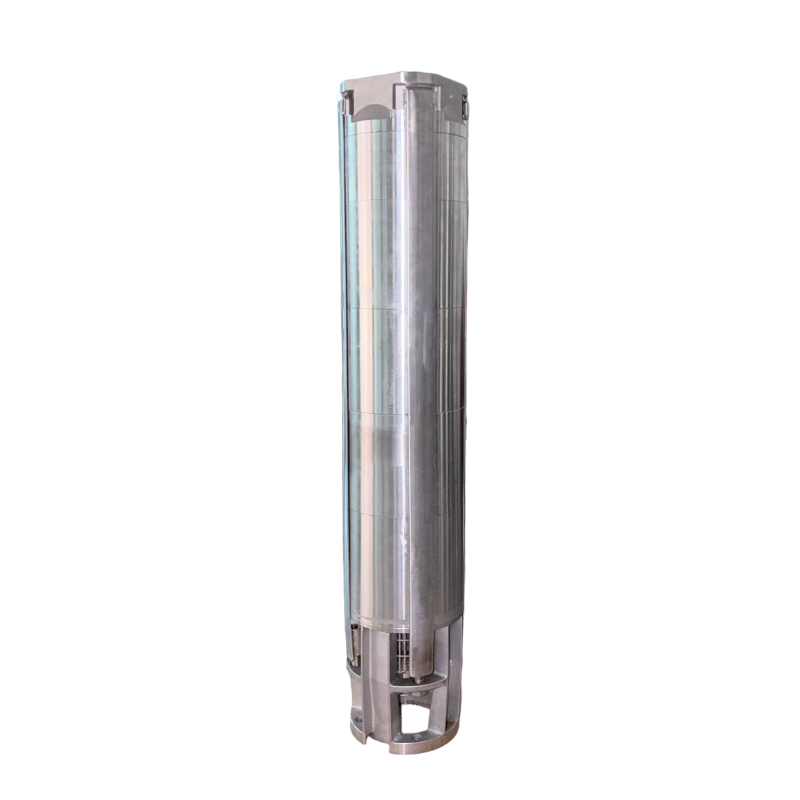

  • Deehp’s heavy-duty 10-inch cast stainless steel fountain pump is professionally designed for ultra-large low-lift fountain matrices in natural lake and reservoir environments, delivering a stable flow rate of 120m³/h. Equipped with heavy cast SS304 impellers and diffusers, it achieves outstanding anti-sediment and anti-clogging performance, boasting superior durability over stamped SP-series pumps in water bodies with fine suspended solids. Exclusively matched with 45kW–110kW ultra-high-power 10-inch water-cooled submersible motors, it supports 24-hour non-stop continuous operation. Featuring a flexible adjustable head range from 48m to 216m, it is ideal for designing large-scale, full-coverage lake fountain layout systems.

FOB Reference Price:

Overview

  • Deehp’s 10QP120 sub-series is a cast stainless steel encapsulated submersible fountain pump with a uniform 10-inch outer barrel diameter, fixed rated flow of 120 m³/h, standard 50Hz power frequency and rated rotating speed of 2850rpm. All pump units within this Deehp sub-series share identical casing size, design flow, frequency and rotational speed; performance differences only come from varying impeller stage counts and matched Deehp motor power to meet diverse fountain lift requirements.


    Model Description:

    e.g.,10QP120-6

    10 —— pump size (inches),

    QP —— pump series,

    120 —— rated flow rate (m³/h),

    6 —— 6 impeller stages

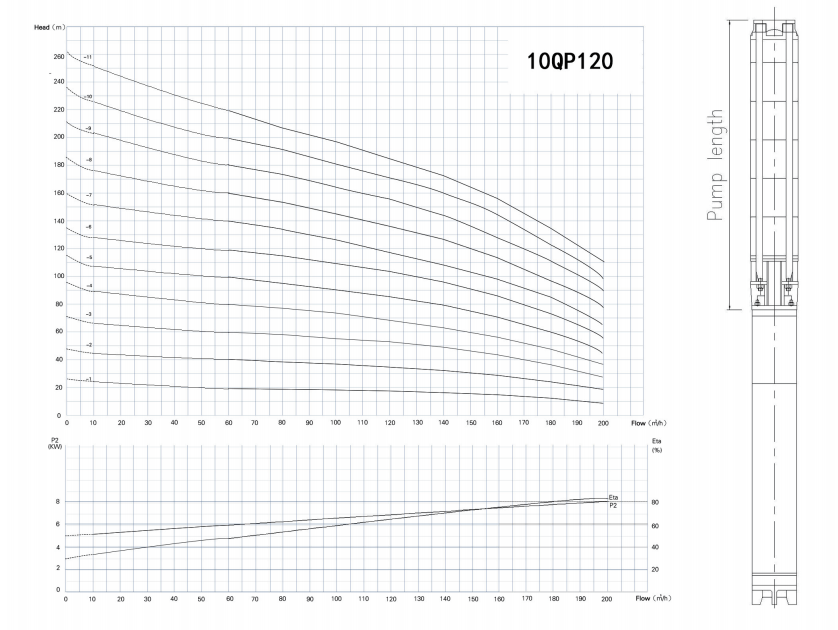

Performance Parameters

  • Model No. Motor Q(m³/h) Flow(n≈2850r/min) Pump
    Length(mm)    		 Pump
    Weight(kg)    		 Outlet
    Diameter
    kW HP 60 80 100 120 140 160 180 200
    10QP120-1 9.2 12.5 H(m) 20 19 18 17 16 14 12 9 530 25.4 DN150 6"
    10QP120-2 18.5 25 40 38 36 34 32 28 24 18 690 34
    10QP120-3 30 40 60 57 54 51 48 42 36 27 850 42.5
    10QP120-4 37 50 80 76 72 68 64 56 48 36 1010 51
    10QP120-5 45 60 100 95 90 85 80 70 60 45 1170 59
    10QP120-6 55 75 120 114 108 102 96 84 72 54 1330 71.5
    10QP120-7 63 85 140 133 126 119 112 98 84 63 1490 80
    10QP120-8 75 100 160 152 144 136 128 112 96 72 1650 88
    10QP120-9 90 125 180 171 162 153 144 126 108 81 1810 96.5
    10QP120-10 90 125 200 190 180 170 160 140 120 90 1970 105
    10QP120-11 110 150 220 209 198 187 176 154 132 99 2130 113
