4ST8 Series

Home / Submersible Well Pumps / 4ST8 Series

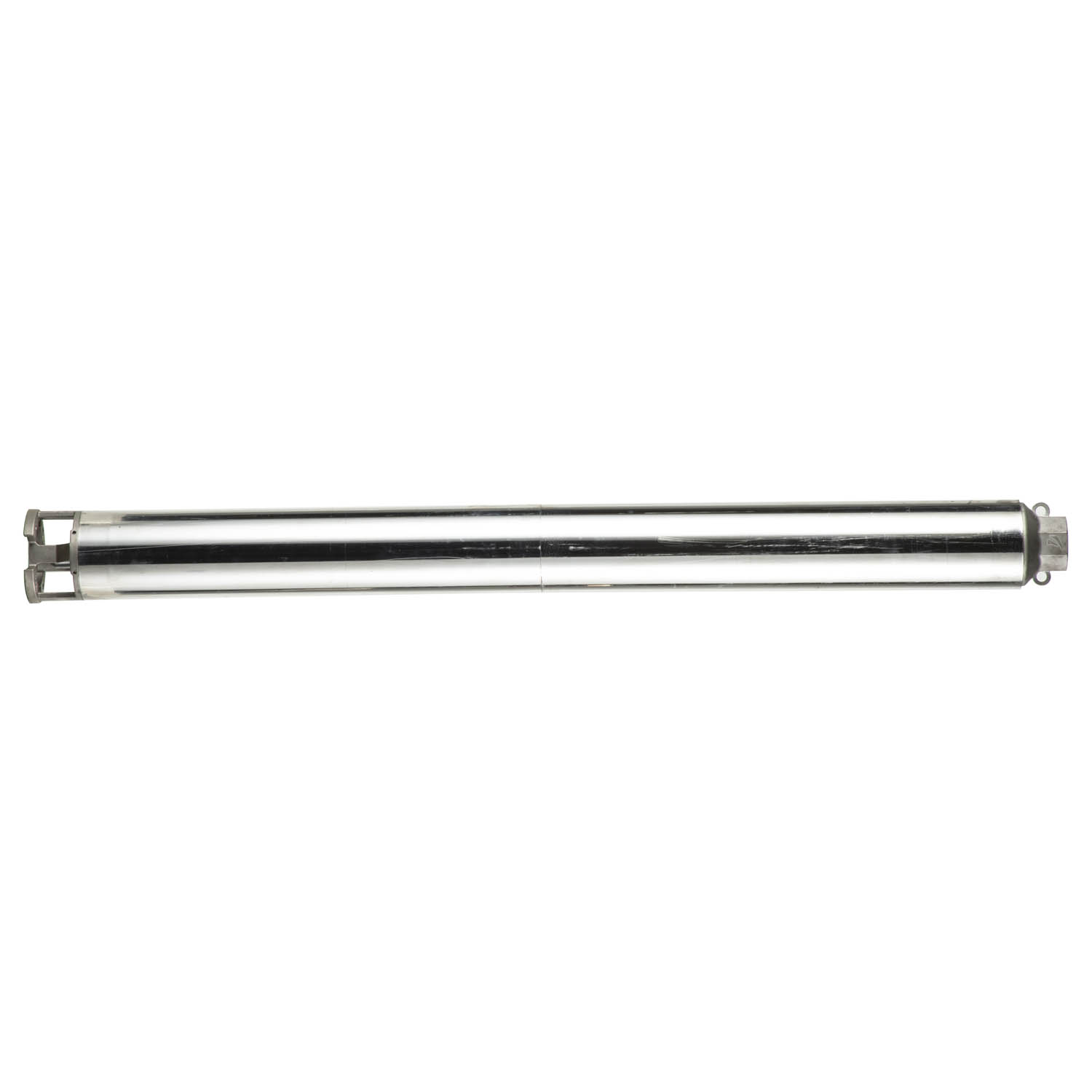

  • submersible-pump.jpg
Product Model:

4ST8 Series

4ST8 Series

  • Deehp’s medium-large flow plastic impeller well pump adopts widened plastic flow channels to effectively reduce minor silt clogging risks. Built with Deehp's design, it delivers stable anti-clogging performance, specially optimized for farmland irrigation and community centralized shallow well water supply.

FOB Reference Price:

Overview

  • Deehp’s 4ST8 is the large-flow model of the Deehp 4ST series, with a rated flow up to 8m³/h and a maximum head of 226m. Adopting enlarged plastic impeller channels for stable large water output, it is specially dedicated for farmland irrigation, community centralized water supply and small fountain circulation systems.


    Model Description:

    e.g.,4ST8-6

    4 —— pump size (inches),

    ST —— pump series,

    8 —— rated flow rate (m³/h),

    6 —— 6 impeller stages

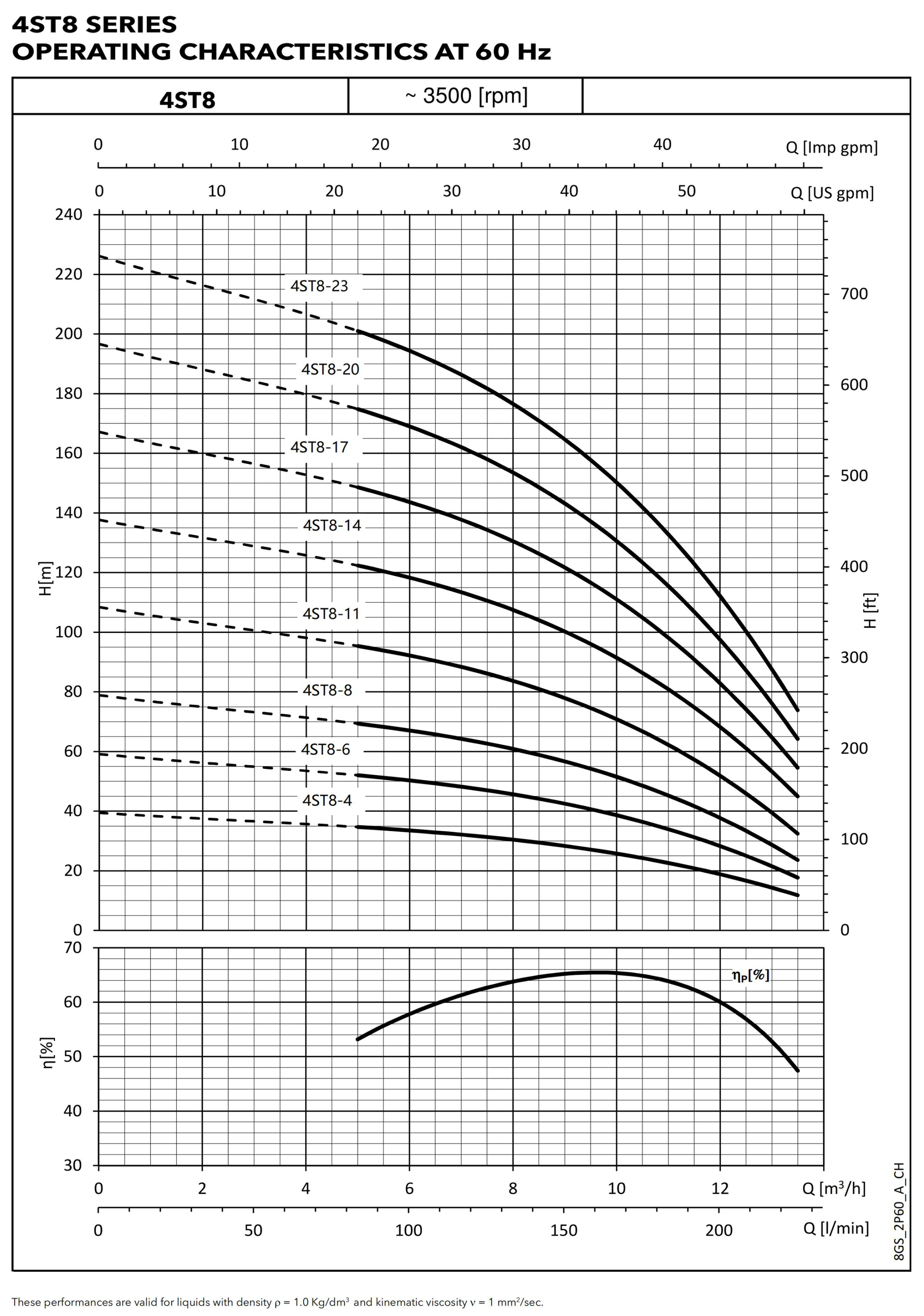

Performance Parameters

  • PUMP TYPE MOTOR POWER Q=DELIVERY m³/h PUMP WEIGHT
    kW HP 0 5 7.2 9.6 12 13.5
    H= TOTAL HEAD METRES COCUMN OF WATER KG
    4ST8-4 1.1 1.5 39 35 32 27 19 12 12
    4ST8-6 1.5 2 59 52 48 40 28 18 14.7
    4ST8-8 2.2 3 79 69 64 54 38 24 16.8
    4ST8-11 3 4 108 95 88 74 52 32 18.7
    4ST8-14 4 5.5 138 122 112 95 68 45 23.7
    4ST8-17 5.5 7.5 167 149 136 116 83 55 28
    4ST8-20 5.5 7.5 197 175 160 136 97 64 28.9
    4ST8-23 7.5 10 226 201 185 156 112 74 37.2

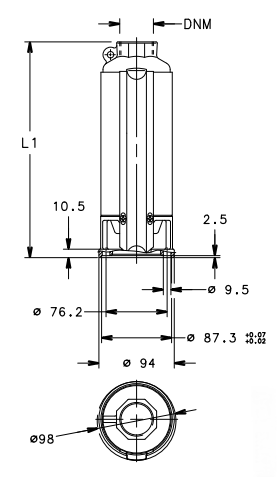

Overall Dimension Drawing

Overall dimension drawing

Operating Limits

    1. • Rated frequency: 60Hz, rotating speed ~3500rpm
    2. • Maximum water temperature: ≤35℃
    3. • Max allowable solid particle diameter in water: ≤0.2mm
    4. • Maximum submersible depth: ≤150m
    5. • Working medium: Clean fresh underground water
    6. • Voltage option: Single-phase 220V / Three-phase 380V (custom 60Hz voltage available)
